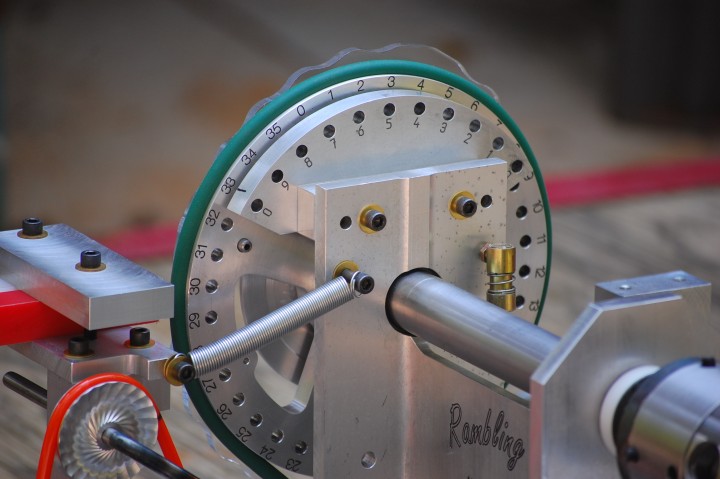

We fabricated the spindle index pulley on a CNC milling machine from a solid piece of 6061 aluminum. It could be fabricated on a manual milling machine. Also, the colar and index pulley could be fabricated separately and fastened together.

The holes must be drilled and reamed very accurately to align with the ornamental indexing veriner and the rosette cams. It must be bored for a slip fit on the spindle. This is probably the most difficult to fabricate and critical piece of the ornamental rose engine.

Download:   pulleyspindle1.pdf is 54k PDF file that can be viewed and printed with Acrobat reader.

Terms of use:    The information on Rose Engines that is presented on this web site, and all drawings and photographs are intended for the reader's private and personal use and may not be distributed or re-transmitted in any form without prior written permission from the author.

Only limited details are available and the projects have NOT been engineered by the authors. Therefore, when you use the ideas for projects of your own, not for commercial use, you must develop your own details and plans and the safety and performance of your work is your responsibility.
Be safe,

Fred Connell & Roland Hege
