Custom Rose Engine & Ornamental Lathe

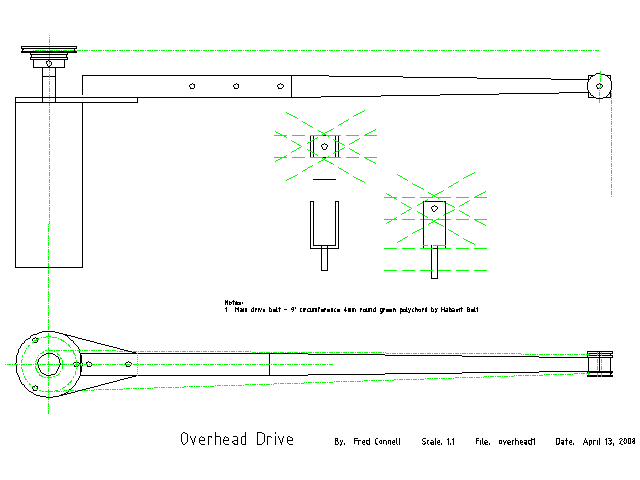

Overhead drive system

The universal cutting frame is driven by a 1/2 HP variable speed motor through an overhead round 4mm round belt drive system. When the belt is on the bigger drive pulley the overall drive ratio is one turn of the motor gives 2.1 turns of the cutter head. The overhead can be adjusted for any location or angle of the cutting frame within the capacity of the Rose Engine itself.
