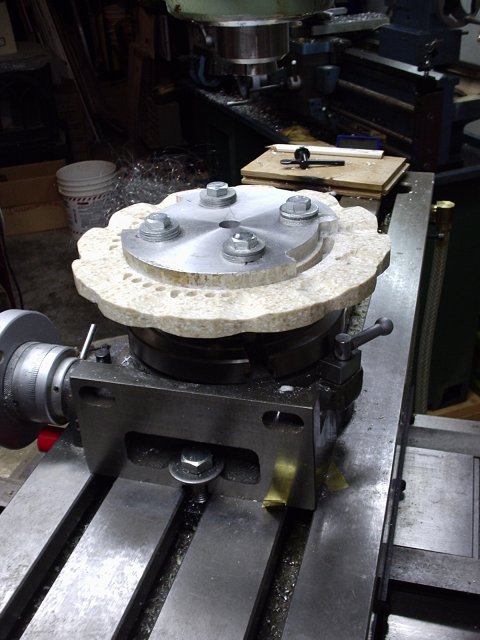

Rose Engine & Ornamental Lathe Using a milling machine to fabricate a rosette cam for rocking and pumping This is a 12 lobe rosette cam with 0.25¨ travel for both rocking and pumping. This Corian rosette cam has eight quarter phase alignment holes.            OrnamentalRoseEngine.com E-mail: info1@OrnamentalRoseEngine.com
