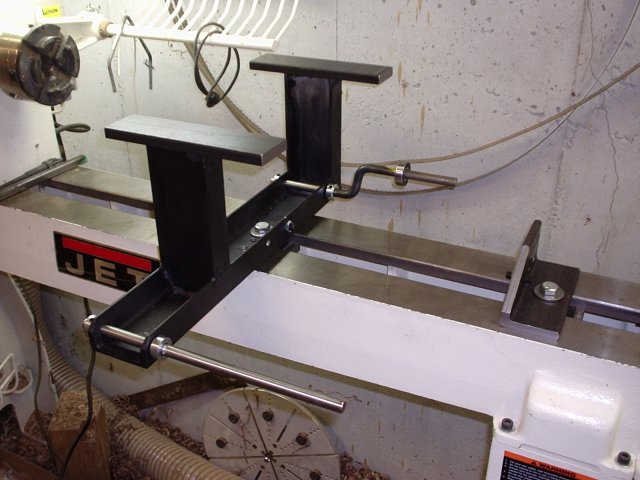

Rose Engine & Ornamental Lathe Rubber assembly & left spindle head pivot is fabricated and primed. T-nuts are completed and the holes are tapped for the spindle pivot shaft stops. The front and rear rubber rest platforms are fabricated. The hand crank shaft and idler tension shafts are ready for pulleys. The right stop assembly is ready to sand blast and paint.            OrnamentalRoseEngine.com E-mail: info1@OrnamentalRoseEngine.com
