Overhead drive crane - collet01.jpg 720x394 - 78k
Custom Rose Engine & Ornamental Lathe
ERE20 Collet Chuck with Trumpet Turkey Call

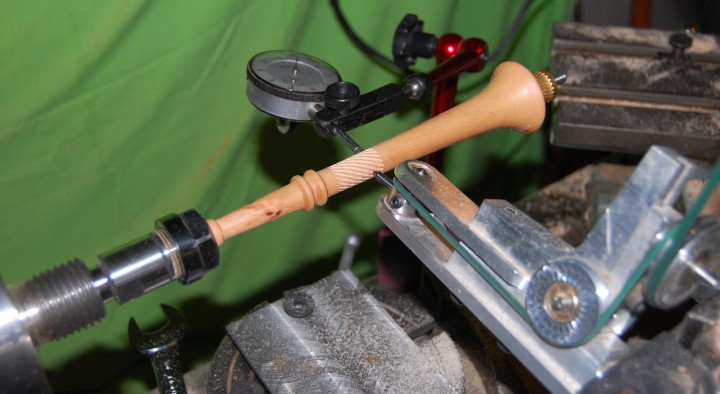

An ER20 collet chuck with a MT-2 taper and 1/4"x20 tpi Cabarrus Standard drawbar is holding the trumpet turkey call jig for Rose Engine decorating. The bone mouthpiece of the turkey call has been removed so the custom turkey call jig can secure the call to the Rose Engine.

The turkey call has been turned from a whole North Carolina dogwood branch.
