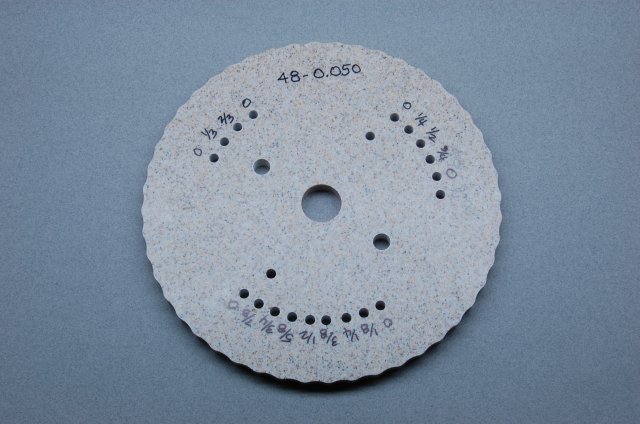

The 9" diameter Corian rosette cam has been centered on the rotary table on the milling machine and the center hole bored to the correct size. The quarter phase, third phase and eighth phase index holes have been drilled to allow phase adjustments. This larger cam can be rotated quite a bit faster than the original 6.5" diameter rosette cam.
|
